基础操作
registerSubClassFromListConstructor
- 把子类Type注册到抽象基类，FromListConstructor是构造函数，建议为共享列表的构造函数
void registerSubClassFromListConstructor(Type, FromListConstructor)
test
import 'dart:math';
import 'package:flutter_matrix/matrix_type.dart';
class SparseMatrix extends MatrixWrapper<SparseMatrix> {
SparseMatrix(List<List<num>> data, {int? known_row, int? known_column}) :
super(data, known_row: known_row, known_column: known_column);
SparseMatrix.fromList(List<List<double>> data, {int? known_row, int? known_column}) :
super.fromList(data, known_row: known_row, known_column: known_column);
SparseMatrix.buildBySparsity({
required double sparsity,
required int row,
required int column,
}) : super(
_generateSparseData(sparsity: sparsity, row: row, column: column),
known_row: row,
known_column: column,
);
static List<List<double>> _generateSparseData({
required double sparsity,
required int row,
required int column,
}) {
final rand = Random();
final total = row * column;
final onesCount = ((1 - sparsity) * total).round();
List<int> allIndices = List.generate(total, (i) => i);
allIndices.shuffle(rand);
Set<int> oneIndices = allIndices.take(onesCount).toSet();
return List.generate(row, (i) {
return List.generate(column, (j) {
int idx = i * column + j;
return oneIndices.contains(idx) ? 1.0 : 0.0;
});
});
}
}
main(){
data_format = "%2.0f";
registerSubClassFromListConstructor(SparseMatrix, SparseMatrix.new);
var mt = MatrixBase.fill<SparseMatrix>(number: 0, row: 4, column: 5);
mt.visible();
SparseMatrix.buildBySparsity(sparsity: 0.8, row: 2, column: 5).visible();
}
output
[
[ 0 0 0 0 0]
[ 0 0 0 0 0]
[ 0 0 0 0 0]
[ 0 0 0 0 0]
]
[
[ 0 0 0 0 1]
[ 0 1 0 0 0]
]
fill
- 生成被number填充的矩阵
static T fill<T extends MatrixBase<T>>({
required double number,
required int row,
required int column
})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.2f";
MatrixBase.fill<Matrix>(number: 3.14, row: 4, column: 5).visible();
}
output
[
[ 3.14 3.14 3.14 3.14 3.14]
[ 3.14 3.14 3.14 3.14 3.14]
[ 3.14 3.14 3.14 3.14 3.14]
[ 3.14 3.14 3.14 3.14 3.14]
]
arrange
- 从start开始生成间隔1的矩阵
static T arrange<T extends MatrixBase<T>>({
double start = 0.0,
required int row,
required int column
})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
MatrixBase.arrange<Matrix>(row: 3, column: 7, start: 0).visible();
}
output
[
[ 0 1 2 3 4 5 6]
[ 7 8 9 10 11 12 13]
[ 14 15 16 17 18 19 20]
]
linspace
- 生成从start开始到end结束的均匀数据，keep为true则保留到end结束
- 允许start不大于end
static T linspace<T extends MatrixBase<T>>({
required double start,
required double end,
bool keep = true,
required int row,
required int column
})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.5f";
MatrixBase.linspace<Matrix>(start: 0, end: 10, row: 2, column: 5).visible();
MatrixBase.linspace<Matrix>(start: 0, end: 10, row: 2, column: 5, keep: false).visible();
MatrixBase.linspace<Matrix>(start: 0, end: -10, row: 2, column: 5).visible();
MatrixBase.linspace<Matrix>(start: 0, end: -10, row: 2, column: 5, keep: false).visible();
}
output
[
[ 0.00000 1.11111 2.22222 3.33333 4.44444]
[ 5.55556 6.66667 7.77778 8.88889 10.00000]
]
[
[ 0.00000 1.00000 2.00000 3.00000 4.00000]
[ 5.00000 6.00000 7.00000 8.00000 9.00000]
]
[
[ 0.00000 -1.11111 -2.22222 -3.33333 -4.44444]
[-5.55556 -6.66667 -7.77778 -8.88889 -10.00000]
]
[
[ 0.00000 -1.00000 -2.00000 -3.00000 -4.00000]
[-5.00000 -6.00000 -7.00000 -8.00000 -9.00000]
]
deepCopy
- 深拷贝一个MatrixBase子类的数据来构造矩阵
- 仅仅是拷贝属性
static T deepCopy<T extends MatrixBase<T>>(MatrixBase other)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var mt = MatrixCollection([
[1, 2, 3],
[6, 6, 9]
]);
mt.visible();
var mt1 = MatrixBase.deepCopy<Matrix>(mt);
mt1.visible();
print(mt1.runtimeType);
}
output
[
[ 1 2 3]
[ 6 6 9]
]
[
[ 1 2 3]
[ 6 6 9]
]
Matrix
broadcast
- 从最后一个维度开始广播多个矩阵，每个维度要么相等，要么其中一个为 1，否则广播失败。
static List<T> broadcast<T extends MatrixBase<T>>(List<T> mts)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var mt1 = Matrix.fromList([
[1, 2, 3],
[4, 5, 6]]
);
var mt2 = Matrix.fromList([
[4],
[7]]
);
var mt3 = Matrix.fromList([
[5],
[6]
]);
for (final t in MatrixBase.broadcast([mt1, mt2, mt3])){
t.visible();
}
var mt4 = Matrix.fromList([
[9, 3, 1]
]);
var mt5 = Matrix.fromList([
[1, 2, 1]
]);
MatrixBase.broadcast([mt1, mt4, mt5]).forEach((mt) => mt.visible());
}
output
[
[ 1 2 3]
[ 4 5 6]
]
[
[ 4 4 4]
[ 7 7 7]
]
[
[ 5 5 5]
[ 6 6 6]
]
[
[ 1 2 3]
[ 4 5 6]
]
[
[ 9 3 1]
[ 9 3 1]
]
[
[ 1 2 1]
[ 1 2 1]
]
- 从start开始，生成步长为step的矩阵
static T range<T extends MatrixBase<T>>({
double start = 0.0,
double step = 1.0,
required int row,
required int column
})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.1f";
MatrixBase.range<Matrix>(row: 2, column: 6, start: 0, step: 0.5).visible();
}
output
[
[ 0.0 0.5 1.0 1.5 2.0 2.5]
[ 3.0 3.5 4.0 4.5 5.0 5.5]
]
E
- 生成n阶单位矩阵
static T E<T extends MatrixBase<T>>({required int n})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.1f";
MatrixBase.E<Matrix>(n : 3).visible();
}
output
[
[ 1.0 0.0 0.0]
[ 0.0 1.0 0.0]
[ 0.0 0.0 1.0]
]
ELike
- 生成类单位矩阵，取决于行和列中的最小值
static T ELike<T extends MatrixBase<T>>({required int row, required int column})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
MatrixBase.ELike<Matrix>(row: 3, column: 4).visible();
MatrixBase.ELike<Matrix>(row: 4, column: 3).visible();
MatrixBase.ELike<Matrix>(row: 3, column: 3).visible();
}
output
[
[ 1 0 0 0]
[ 0 1 0 0]
[ 0 0 1 0]
]
[
[ 1 0 0]
[ 0 1 0]
[ 0 0 1]
[ 0 0 0]
]
[
[ 1 0 0]
[ 0 1 0]
[ 0 0 1]
]
align
- 根据最长的列表对其他短数据进行对齐。该方法基于原来的二位数组进行拓展，并非复制再操作
- 模式0：使用number补充缺失值
- 模式1：根据每行的原有数据进行重复补全，例如：最长为10，某行只有4、2、6，则补全为4、2、6、4、2、6、4、2、6、4，如果该行为空，全用number覆盖
- 其他模式：根据func自己设计规则，func的第一个参数表示当前行列表，请处理好空行情况
static T align<T extends MatrixBase<T>>(List<List<double>> data,
{int mode = 0,
double number = double.nan,
double Function(List<double> list)? func})
test
import 'package:collection/collection.dart';
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
final List<List<double>> data = [
[1],
[2, 0, 9, 7],
[],
[1, 1, 8, 3, 2],
[8, 2],
[9, 1, 2]
];
final data2 = data.deepcopy;
final data3 = data.deepcopy;
MatrixBase.align<Matrix>(data, mode: 0, number: 1).visible();
data.definePrint();
MatrixBase.align<Matrix>(data2, mode: 1, number: double.nan).visible();
MatrixBase.align<Matrix>(data3, mode: 2, func: (l) => l.isEmpty ? double.nan : l.max).visible();
}
output
[
[ 1 1 1 1 1]
[ 2 0 9 7 1]
[ 1 1 1 1 1]
[ 1 1 8 3 2]
[ 8 2 1 1 1]
[ 9 1 2 1 1]
]
[
[ 1 1 1 1 1]
[ 2 0 9 7 1]
[ 1 1 1 1 1]
[ 1 1 8 3 2]
[ 8 2 1 1 1]
[ 9 1 2 1 1]
]
[
[ 1 1 1 1 1]
[ 2 0 9 7 2]
[NaN NaN NaN NaN NaN]
[ 1 1 8 3 2]
[ 8 2 8 2 8]
[ 9 1 2 9 1]
]
[
[ 1 1 1 1 1]
[ 2 0 9 7 9]
[NaN NaN NaN NaN NaN]
[ 1 1 8 3 2]
[ 8 2 8 8 8]
[ 9 1 2 9 9]
]
String
- 格式化输出矩阵，format是输出数据的统一格式，如果没有则使用data_format代替
- data_format作为全局变量允许被修改来控制输出
- color表示数据的颜色，是十六进制字符串。
String toString({String? format, String color = '#ffd700'})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.1f";
final mt = Matrix.fromList([
[4, 1, 0, 9],
[0, 9, 2, 6],
[6, 4, 3, 2]
]);
print(mt.toString(color: '#0532ff'));
print(mt.toString(format: '%2.0f', color: '#00ffa6'));
print(mt.toString(color: '#ff0000'));
}

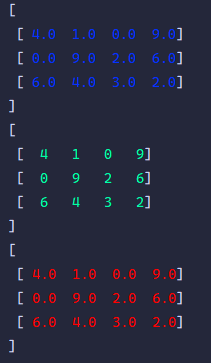

output
visible
- 包装了toString的功能并且添加了额外字符打印功能
- 快速查看矩阵
void visible({
String? format,
String color = '#ffd700',
String? start_point,
String? end_point
})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.1f";
final mt = Matrix.fromList([
[4, 1, 0, 9],
[0, 9, 2, 6],
[6, 4, 3, 2]
]);
mt.visible(
start_point: "-------------------Matrix-------------------",
end_point: "--------------------------------------------"
);
}
output
-------------------Matrix-------------------
[
[ 4.0 1.0 0.0 9.0]
[ 0.0 9.0 2.0 6.0]
[ 6.0 4.0 3.0 2.0]
]
--------------------------------------------
row_
- 获取某行的复制数据
List<double> row_(int index)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
final mt = Matrix.fromList([
[4, 1, 0, 9],
[0, 9, 2, 6],
[6, 4, 3, 2]
]);
final r = mt.row_(2);
mt[2][2] = 13;
print(r);
print(mt[2]);
}
output
[6.0, 4.0, 3.0, 2.0]
[6.0, 4.0, 13.0, 2.0]
column_
- 获取某列的复制数据
List<double> column_(int index)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
final mt = Matrix.fromList([
[4, 1, 0, 9],
[0, 9, 2, 6],
[6, 4, 3, 2]
]);
final r = mt.column_(3);
print(r);
}
output
isShared
- 判断两个矩阵是不是共享了同一个数据
bool isShared(covariant MatrixBase other)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
final List<List<double>> data = [
[4, 1, 0, 9],
[0, 9, 2, 6],
[6, 4, 3, 2]
];
final mt = Matrix.fromList(data);
final mc = MatrixCollection.fromList(data);
print(mt.isShared(mc));
mt[0][0] = 2;
mc.visible();
}
output
true
[
[ 2 1 0 9]
[ 0 9 2 6]
[ 6 4 3 2]
]
setMask
- 根据传入值决定是不是要将矩阵中的nan、无穷大替换
void setMask({double? nan_mask, double? inf_mask, double? nag_inf_mask})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%5.3f";
final List<List<double>> data = [
[4, double.nan, 0, 9],
[0, 9, double.infinity, 6],
[6, 4, double.negativeInfinity, 2]
];
final mt = Matrix.fromList(data)..visible();
mt..setMask(nan_mask: 1, inf_mask: 3, nag_inf_mask: 5)..visible(format: "%2.0f");
}
output
[
[ 4.000 NaN 0.000 9.000]
[ 0.000 9.000 Infinity 6.000]
[ 6.000 4.000 -Infinity 2.000]
]
[
[ 4 1 0 9]
[ 0 9 3 6]
[ 6 4 5 2]
]
contain
- 矩阵中是否包含某个数据（不包括double.nan）
bool contain(double element)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
final List<List<double>> data = [
[4, double.nan, 0, 9],
[0, 9, double.infinity, 6],
[6, 4, double.negativeInfinity, 2]
];
final mt = Matrix.fromList(data)..visible();
print(mt.contain(double.infinity));
print(mt.contain(double.negativeInfinity));
// 根据 IEEE 754 的定义：NaN 与任何值（包括它自己）进行相等比较时，结果都是 false。
print(mt.contain(double.nan));
print(mt.any((x) => x.isNaN));
}
output
[
[4.00000 NaN 0.00000 9.00000]
[0.00000 9.00000 Infinity 6.00000]
[6.00000 4.00000 -Infinity 2.00000]
]
true
true
false
true
- 判断两个同类矩阵是不是数据一样或者矩阵是不是全是某个数据
==运算符仅可以对比同类矩阵
bool equalTo(Object other)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
var m = MatrixBase.fill<Matrix>(number: 2, row: 3, column: 5);
print(m.equalTo(2));
print(m.equalTo(MatrixBase.fill<Matrix>(number: 2, row: 3, column: 5)));
}
output
toList
- 将矩阵转为不同类型的数据列表
- 其中转复数的时候，矩阵列必须为2
List<dynamic> toList(Typed type)
test
import 'package:flutter_matrix/matrix_type.dart';
import 'package:flutter_matrix/unrelated_util.dart';
main(){
var m = Matrix.fromList([[-2, 3], [0, 1]]);
for (var t in Typed.values){
print("${t.name}, ${m.toList(t)}");
}
}
output
int8, [[-2, 3], [0, 1]]
int16, [[-2, 3], [0, 1]]
int32, [[-2, 3], [0, 1]]
int64, [[-2, 3], [0, 1]]
int, [[-2, 3], [0, 1]]
float32, [[-2.0, 3.0], [0.0, 1.0]]
float64, [[-2.0, 3.0], [0.0, 1.0]]
double, [[-2.0, 3.0], [0.0, 1.0]]
bool, [[true, true], [false, true]]
uint8, [[254, 3], [0, 1]]
uint16, [[65534, 3], [0, 1]]
uint32, [[4294967294, 3], [0, 1]]
uint64, [[-2, 3], [0, 1]]
complex, [Complex(-2.0, 3.0), Complex(0.0, 1.0)]
append
- 向矩阵中添加数据，设计之初，就已经规定矩阵是可增减的
void append(List<double> data, {bool horizontal = true})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var m = Matrix.fromList([[-2, 3], [0, 1]]);
m..append([3, 2], horizontal: true)..visible();
print(m.shape);
m..append([0, 0, 0], horizontal: false)..visible();
print(m.shape);
}
output
[
[ -2 3]
[ 0 1]
[ 3 2]
]
[3, 2]
[
[ -2 3 0]
[ 0 1 0]
[ 3 2 0]
]
[3, 3]
hasSameShape
- 判断是不是相同形状
bool hasSameShape(covariant MatrixBase other)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
var m = Matrix.fromList([[-2, 3], [0, 1]]);
print(m.hasSameShape(MatrixCollection([[-2, 3], [0, 1]])));
print(m.hasSameShape(MatrixCollection([[-2, 3, 1], [0, 5, 1]])));
}
output
size
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
print(MatrixBase.arrange<Matrix>(row: 65, column: 23,).size);
}
output
flattened
- 矩阵横向展平为一个向量
List<double> get flattened
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
print(MatrixBase.arrange<Matrix>(row: 2, column: 3).flattened);
}
output
[0.0, 1.0, 2.0, 3.0, 4.0, 5.0]
isSquare
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
print(MatrixBase.arrange<Matrix>(row: 2, column: 3).isSquare);
print(MatrixBase.arrange<Matrix>(row: 2, column: 2).isSquare);
}
output
hashCode和==
==仅支持相同类实例的数据比较- 两个对象
==为true的时候，哈希码也必须相同
- 参考：https://api.dart.dev/dart-core/Object/hashCode.html
int get hashCode
bool operator ==(Object other)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
var t1 = MatrixBase.arrange<Matrix>(row: 2, column: 3);
var t2 = MatrixBase.arrange<Matrix>(row: 2, column: 3);
print(t1 == t2);
print(t1.hashCode == t2.hashCode);
final mp = {
t1 : 1,
t2 : 2
};
print(mp[t1]);
}
output
>、>=、<、<=
- 对同类矩阵实例之前进行数据比较
- 矩阵和数据比较
bool operator >(Object other)
bool operator >=(Object other)
bool operator <(Object other)
bool operator <=(Object other)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3]
]);
var t2 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3]
]) + 0.001;
print(t1 > -3);
print(t1 >= -3);
print(t1 <= t2);
print(t1 < t2);
}
output
[]和[]=
- 获取和替换某行
void operator []=(int index, List<double> value)
List<double> operator [](int index)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3]
]);
print(t1[1]);
print(identityHashCode(t1.self[1]));
t1[1] = [2, 2, 4, 2];
t1.visible();
print(identityHashCode(t1.self[1]));
t1.replaceRow(1, [2, 2, 2, 2]);
t1.visible();
print(identityHashCode(t1.self[1]));
}
output
[0.0, 2.0, -3.0, 3.0]
239251943
[
[ 3 6 2 1]
[ 2 2 4 2]
]
67174965
[
[ 3 6 2 1]
[ 2 2 2 2]
]
67174965
replaceRow
- 对某行的值进行替换且不改变列表地址
void replaceRow(int index, List<double> value)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3]
]);
print(t1[1]);
print(identityHashCode(t1.self[1]));
t1[1] = [2, 2, 4, 2];
t1.visible();
print(identityHashCode(t1.self[1]));
t1.replaceRow(1, [2, 2, 2, 2]);
t1.visible();
print(identityHashCode(t1.self[1]));
}
output
[0.0, 2.0, -3.0, 3.0]
239251943
[
[ 3 6 2 1]
[ 2 2 4 2]
]
67174965
[
[ 3 6 2 1]
[ 2 2 2 2]
]
67174965
deepcopy
- 深拷贝类本身数据来创建另一个同类
- MatrixCollection不会被拷贝binds
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var t1 = MatrixCollection.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3]
]);
t1.setter('key', 'value');
final t2 = t1.deepcopy..visible();
print(t2.binds);
}
output
[
[ 3 6 2 1]
[ 0 2 -3 3]
]
{}
concat
- 拼接两个矩阵
T concat({required T other, bool horizontal = true})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3]
]);
var t2 = MatrixBase.fill<Matrix>(number: 1, row: 2, column: 2);
var t3 = MatrixBase.fill<Matrix>(number: 1, row: 3, column: 4);
t1.concat(other: t2, horizontal: true).visible();
t1.concat(other: t3, horizontal: false).visible();
}
output
[
[ 3 6 2 1 1 1]
[ 0 2 -3 3 1 1]
]
[
[ 3 6 2 1]
[ 0 2 -3 3]
[ 1 1 1 1]
[ 1 1 1 1]
[ 1 1 1 1]
]
reshape
- 对矩阵重塑形状，必须保证前后形状的尺寸一样
T reshape({required int row, required int column})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3]
]);
t1.reshape(row: 1, column: 8).visible();
}
output
resize
- 重塑矩阵尺寸，如果尺寸变小，则去除多余数据；如果尺寸变大，则使用number进行补充
T resize({required int row, required int column, double number = 0.0})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3]
]);
t1.resize(row: 3, column: 3, number: 2).visible();
t1.resize(row: 2, column: 2).visible();
}
output
[
[ 3 6 2]
[ 1 0 2]
[ -3 3 0]
]
[
[ 3 6]
[ 2 1]
]
flatten
- 按照方向展平矩阵为向量
T flatten({bool horizontal = true})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3]
]);
t1.flatten(horizontal: false).visible();
t1.flatten(horizontal: true).visible();
}
output
[
[ 3 0 6 2 2 -3 1 3]
]
[
[ 3 6 2 1 0 2 -3 3]
]
slice
- 切片操作，获取从 start 到 end（包含）的部分
- 如果 end 未设置，则从 start 处截取剩余部分
- 允许 start 大于 end，以进行反向截取
T slice({required int start, int? end, bool horizontal = true})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3],
[9, 9, 8, 8],
[5, 4, 3, 1]
]);
t1.slice(start: 2, horizontal: true).visible();
t1.slice(start: 2, horizontal: false).visible();
t1.slice(start: 0, end: 2, horizontal: false).visible();
t1.slice(start: 3, end: 1, horizontal: true).visible();
t1.slice(start: 3, end: 1, horizontal: false).visible();
}
output
[
[ 9 9 8 8]
[ 5 4 3 1]
]
[
[ 2 1]
[ -3 3]
[ 8 8]
[ 3 1]
]
[
[ 3 6 2]
[ 0 2 -3]
[ 9 9 8]
[ 5 4 3]
]
[
[ 5 4 3 1]
[ 9 9 8 8]
[ 0 2 -3 3]
]
[
[ 1 2 6]
[ 3 -3 2]
[ 8 8 9]
[ 1 3 4]
]
select
- 选择指定的行或列以形成新的矩阵
- 选择可以按任意顺序进行
- 可以重复
T select({required List<int> target, bool horizontal = true})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3],
[9, 9, 8, 8],
[5, 4, 3, 1]
]);
t1.select(target: [0, 0, 0, 1], horizontal: true).visible();
t1.select(target: [0, 0, 0, 1], horizontal: false).visible();
t1.select(target: [0, 2, 3, 1], horizontal: false).visible();
}
output
[
[ 3 6 2 1]
[ 3 6 2 1]
[ 3 6 2 1]
[ 0 2 -3 3]
]
[
[ 3 3 3 6]
[ 0 0 0 2]
[ 9 9 9 9]
[ 5 5 5 4]
]
[
[ 3 2 1 6]
[ 0 -3 3 2]
[ 9 8 8 9]
[ 5 3 1 4]
]
drop
- 获取删除一些索引后剩余部分组成的矩阵。输入是一个整数的集合
T drop({required Set<int> target, bool horizontal = true})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%2.0f";
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3],
[9, 9, 8, 8],
[5, 4, 3, 1]
]);
t1.drop(target: {0, 3}, horizontal: true).visible();
t1.drop(target: {1, 3}, horizontal: false).visible();
}
output
[
[ 0 2 -3 3]
[ 9 9 8 8]
]
[
[ 3 2]
[ 0 -3]
[ 9 8]
[ 5 3]
]
sort
- 对矩阵数据进行排序
- dim表示维度操作方式，0表示行方向单独操作、1表示列方向单独操作、其他整数表示整体操作，其他包含dim参数的方法原理同上
- reverse为true表示从大到小排序
void sort({bool reverse = false, int dim = -1})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%8.0f";
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3],
[9, double.infinity, 8, 8],
[5, 4, 3, double.negativeInfinity]
]);
t1
..visible()
..sort(reverse: true, dim: 0)
..visible()
..sort(reverse: false, dim: 1)
..visible()
..sort(reverse: true, dim: -1)
..visible()
..sort(reverse: false, dim: 2)
..visible();
}
output
[
[ 3 6 2 1]
[ 0 2 -3 3]
[ 9 Infinity 8 8]
[ 5 4 3 -Infinity]
]
[
[ 6 3 2 1]
[ 3 2 0 -3]
[ Infinity 9 8 8]
[ 5 4 3 -Infinity]
]
[
[ 3 2 0 -Infinity]
[ 5 3 2 -3]
[ 6 4 3 1]
[ Infinity 9 8 8]
]
[
[ Infinity 9 8 8]
[ 6 5 4 3]
[ 3 3 2 2]
[ 1 0 -3 -Infinity]
]
[
[-Infinity -3 0 1]
[ 2 2 3 3]
[ 3 4 5 6]
[ 8 8 9 Infinity]
]
+ 、- 、* 、/
- 加减乘除的对象是同类或者数字
- 其中
*表示矩阵的Hadamard积
T operator +(Object other)
T operator -(Object other)
T operator *(Object other)
T operator /(Object other)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%8.0f";
var t1 = Matrix.fromList([
[3, 6, 2, 1],
[0, 2, -3, 3],
[9, double.infinity, 8, 8],
[5, 4, 3, double.negativeInfinity]
]);
var t2 = MatrixBase.fill<Matrix>(number: 2, row: 4, column: 4);
t2[1][0] = 0;
print(t1 / 2);
print(t1 * t2);
print(t1 + 1);
print(t1 - 1);
print(t1 + t2);
print(t1 / t2);
}
output
[
[ 2 3 1 1]
[ 0 1 -2 2]
[ 5 Infinity 4 4]
[ 3 2 2 -Infinity]
]
[
[ 6 12 4 2]
[ 0 4 -6 6]
[ 18 Infinity 16 16]
[ 10 8 6 -Infinity]
]
[
[ 4 7 3 2]
[ 1 3 -2 4]
[ 10 Infinity 9 9]
[ 6 5 4 -Infinity]
]
[
[ 2 5 1 0]
[ -1 1 -4 2]
[ 8 Infinity 7 7]
[ 4 3 2 -Infinity]
]
[
[ 5 8 4 3]
[ 0 4 -1 5]
[ 11 Infinity 10 10]
[ 7 6 5 -Infinity]
]
[
[ 2 3 1 1]
[ NaN 1 -2 2]
[ 5 Infinity 4 4]
[ 3 2 2 -Infinity]
]
compare
- 逐一比较两个矩阵的对应元素
- 其中 0 表示大于，1 表示小于，2 表示大于等于，3 表示小于等于，4 表示不等于，其他值表示等于
- 返回每个比较位置的 bool 值，最终形成一个二维布尔数组
List<BoolList> compare({required T other, int which = -1})
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
var t1 = Matrix.fromList([
[3, -2, 2, 1],
[0, 2, 13, 3],
[9, double.negativeInfinity, 8, 8]
]);
var t2 = MatrixBase.fill<Matrix>(number: 2, row: 3, column: 4);
for (var i in List.generate(6, (_) => _)) {
print(t1.compare(other: t2, which: i));
}
}
output
[[true, false, false, false], [false, false, true, true], [true, false, true, true]]
[[false, true, false, true], [true, false, false, false], [false, true, false, false]]
[[true, false, true, false], [false, true, true, true], [true, false, true, true]]
[[false, true, true, true], [true, true, false, false], [false, true, false, false]]
[[true, true, false, true], [true, false, true, true], [true, true, true, true]]
[[false, false, true, false], [false, true, false, false], [false, false, false, false]]
^
- 矩阵数据的number幂次方
T operator ^ (Object other)
test
import 'package:flutter_matrix/matrix_type.dart';
main(){
data_format = "%3.5f";
var mt = Matrix.fromList([
[4.3, 3, -5, 0.5],
[5, 9, 10, double.negativeInfinity],
[-5, 3, 0, double.infinity],
]);
(mt ^ 2).visible();
}
output
[
[ 18.49000 9.00000 25.00000 0.25000]
[ 25.00000 81.00000 100.00000 Infinity]
[ 25.00000 9.00000 0.00000 Infinity]
]
